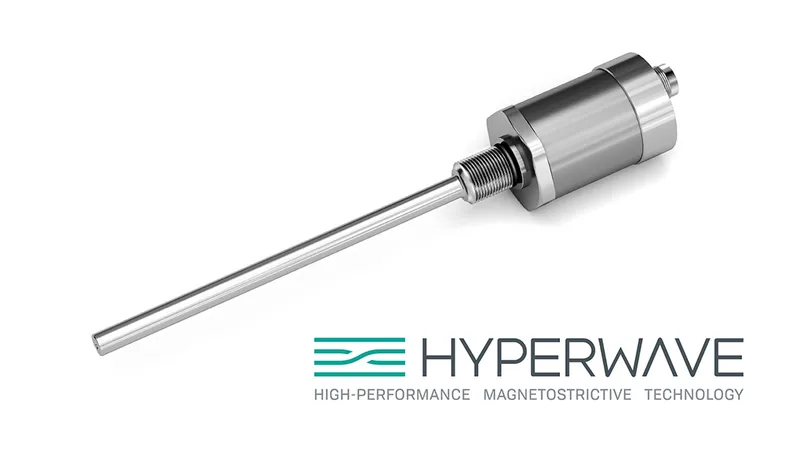

WRP-S Contactless magnetostrictive linear position transducer

WRP-S Contactless magnetostrictive linear position transducer - WRP-S
Datasheet    Manual

Visão
Contactless linear position transducer with HYPERWAVE magnetostrictive technology with RS422-SSI digital output interface.
Housing closure with removable ring nut to allow the whole electronics and sensing element replacement.
The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited life.
High accuracy of the mesurement with reference to the non linearity, repeatability and hysteresis. High resistance to vibrations, mechanical shocks for use in a harsh industrial environment.

Descrição
Optimized mechanical structure
Strokes from 50 to 2500 mm
Wide range of connectors for the electrical connection
Rod, nipple, exagonal flange AISI 316
Power supply 10....32 Vdc
Resistance to vibration (DIN IEC68T2/6 12g)
Protection IP67
Work temperature: -30°…+90°C
Synchronous Serial Interface direct to controllers
Output data resolution available from 20 to 40μm
Data format: binary or Gray code; incremental/decremental
Electromagnetic compatibility EMC 2014/30/EU
Compliant to the directive RoHS 2011/65/EU
